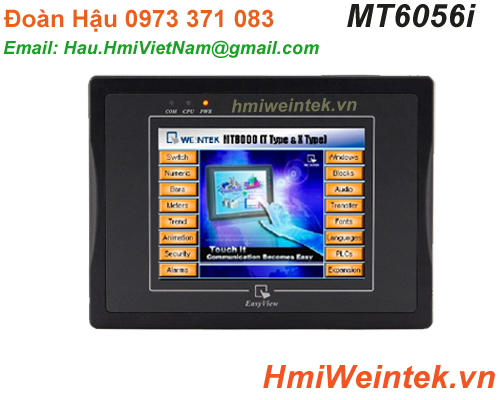

Model: MT6056i Weintek
Thông số kỹ thuật:
- 5.6″ 320 X 234 TFT LCD
- Fan-less cooling system
- Built-in flash memory and RTC
- NEMA4/IP65 compliant front panel
- LED Back Light
- One USB Client Port
- Power Isolator Inside
- COM1 [RS485]2W supports MPI 187.5K
Technical data:
Display
|
Display:
|
5.6" TFT LCD
|
Brightness (cd/m2):
|
500 cd/m2
| |
Contrast Ratio:
|
300:1
| |
Color:
|
65536
| |
Resolution (WXH):
|
320x234
| |
Back Light:
|
LED
| |
Back Light Life Time:
|
30,000 hr
| |
Processor:
|
32bit RISC CPU 400 MHz
| |
Enclosure:
|
Plastic
| |
Touch Panel
|
Touch Panel Type:
|
4 wires resistive type
|
Memory
|
Storage:
|
128 MB Flash
|
RAM (RAM):
|
64 MB
| |
I/O ports
|
SD Card Slot:
|
N/A
|
USB Host:
|
USB 1.1 x 1
| |
USB Client:
|
USB 2.0 x 1
| |
Ethernet Port:
|
N/A
| |
COMPort:
|
COM1(RS232 / RS485 2W/4W),COM2(RS232) COM3(RS232/RS485 2W)
| |
Audio:
|
N/A
| |
Power
|
Input Power:
|
24 ±20% VDC
|
Power Consumption:
|
250mA@24VDC
| |
RTC:
|
Built-in
| |
Specification
|
Panel Cutout (WXH):
|
192x138mm
|
Weight (KG):
|
Approx 0.85kg
| |
Operation
|
CE:
|
Compilies with EN 55022:2006,Class A , EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005 standards
|
FCC:
| ||
UL:
|
E248297
| |
Voltage Resistance:
|
500 VAC (1 min)
| |
Isolation Resistance:
|
Exceed 50MΩ at 500 VDC
| |
Vibration Endurance:
|
10 to 25 Hz (X,Y,Z direction 2G 30minutes)
| |
Protection Structure:
|
IP65 front panel (O ring seal)
| |
Storage Temperature:
|
-20°~60°C (-4°~140°F)
| |
Operating Temperature:
|
0°~50°C (32°~122°F)
| |
Operation Humidity:
|
10-90% RH (non-condense) Bottom of Form
| |
